APC-9004
APC-9004 Four-Node Rugged Server
Intel Xeon 6
- Processor4 independent nodes, each with 1 × Intel Xeon 6505P (12 cores / 24 threads; 2.2–4.1 GHz; 48 MB cache; 150 W TDP). System total: 48 cores / 96 threads.
- Memory128 GB DDR5 ECC RDIMM per node, 512 GB total; up to 6400 MT/s with a validated module population. 256 GB per node (1 TB total) can be specified.
- Operating systemCustomization options: Windows Server 2025 / 2022, Ubuntu Server LTS, Debian, Red Hat Enterprise Linux, Rocky Linux, AlmaLinux, SUSE Linux Enterprise Server and openSUSE. Windows 11 Pro / Enterprise, Fedora and other x86-64 systems can be evaluated on request. OS edition, kernel, drivers and application compatibility are confirmed for the selected hardware.
DESIGN & CONFIGURATION
Product overview
- 6U four-node enclosure with independent operating systems
- Per node: 2 × 10 GbE; management network configured separately.
- Per node: 1 TB NVMe boot SSD and 4 TB data SSD. Four independently managed storage sets.
- Project-specific power, connectors and operating environment
TECHNICAL DATA
Reference specifications
Reference configuration. Customizable to your requirements.
| Processor | 4 independent nodes, each with 1 × Intel Xeon 6505P (12 cores / 24 threads; 2.2–4.1 GHz; 48 MB cache; 150 W TDP). System total: 48 cores / 96 threads. |
|---|---|
| Memory | 128 GB DDR5 ECC RDIMM per node, 512 GB total; up to 6400 MT/s with a validated module population. 256 GB per node (1 TB total) can be specified. |
| Operating system | Customization options: Windows Server 2025 / 2022, Ubuntu Server LTS, Debian, Red Hat Enterprise Linux, Rocky Linux, AlmaLinux, SUSE Linux Enterprise Server and openSUSE. Windows 11 Pro / Enterprise, Fedora and other x86-64 systems can be evaluated on request. OS edition, kernel, drivers and application compatibility are confirmed for the selected hardware. |
| Form factor | 6U four-node rack system |
| System architecture | Intel x86-64; custom motherboard, firmware and I/O integration. |

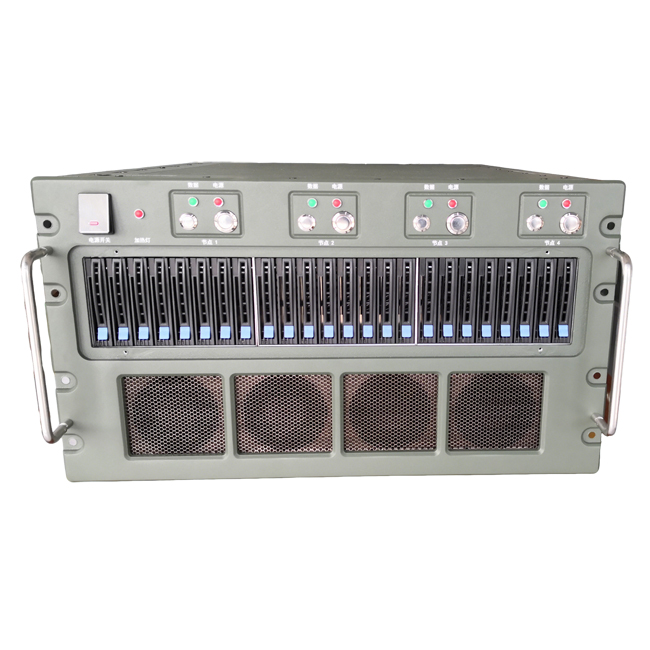

| Storage | Per node: 1 TB NVMe boot SSD and 4 TB data SSD. Four independently managed storage sets. |
| Storage protection | RAID 0 / 1 / 5 / 10 options with a compatible controller; RAID 5 requires at least 3 drives and RAID 10 at least 4. Usable capacity depends on the selected RAID layout. |
| Graphics / GPU | BMC display controller for local service console; optional discrete graphics subject to expansion space and power budget. |
| Networking | Per node: 2 × 10 GbE; management network configured separately. |

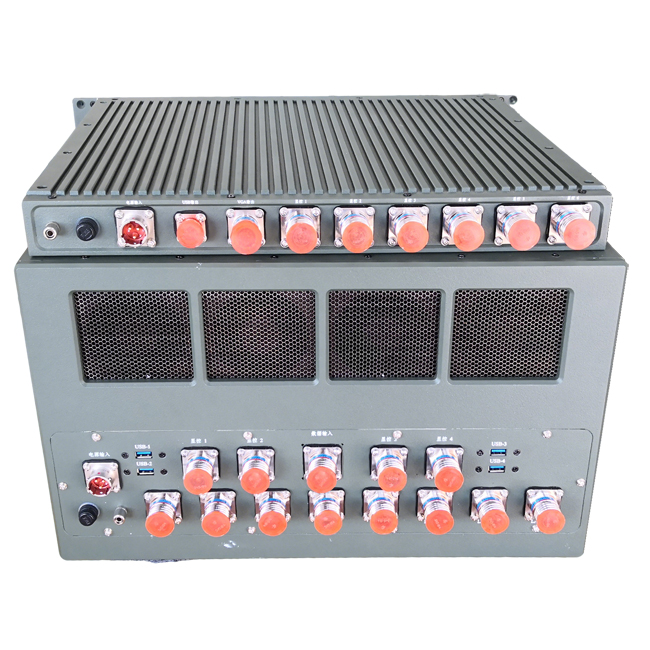

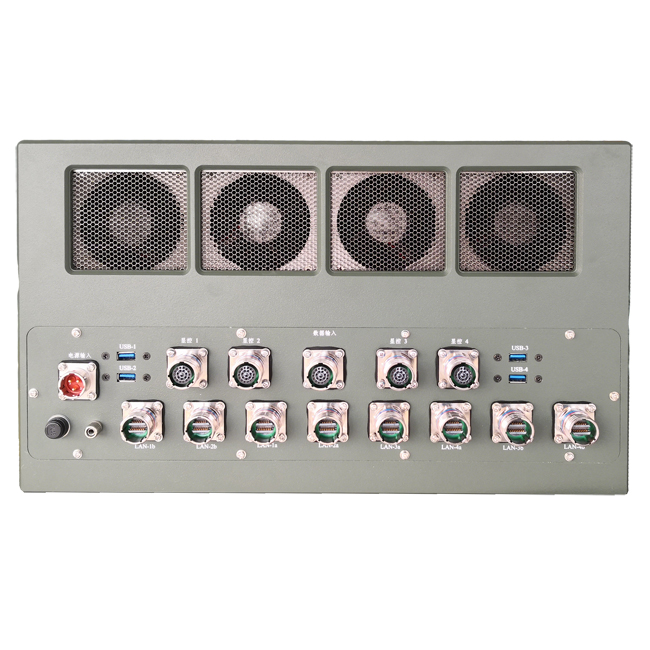

| I/O connections | USB 3.x service ports, VGA console and RS-232 interfaces; standard connectors or locking circular connectors can be specified. Connector pinout and quantity are defined for each project. |
| Expansion | PCIe 5.0 host platform; riser layout, slot count and electrical lane allocation are matched to the enclosure, storage controller and network adapters. |

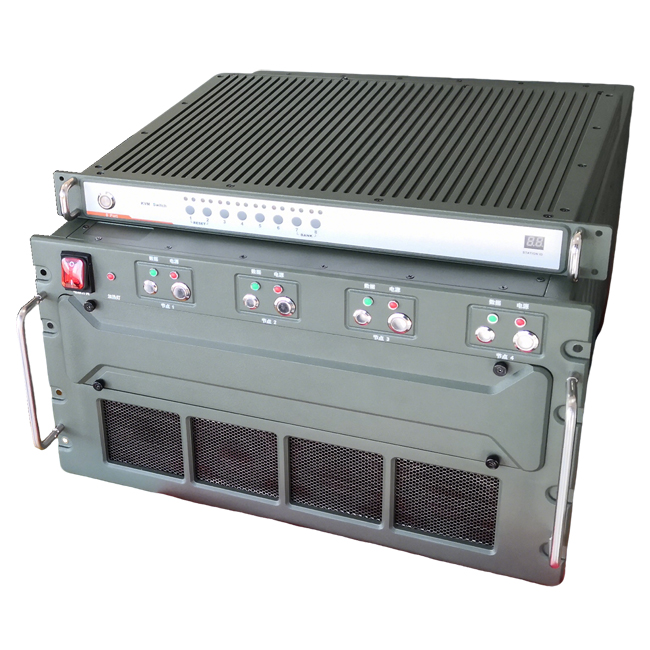

| Management | Independent OS instances and power control for four nodes; optional per-node BMC, remote console and monitoring. |
| Power supply | AC 220 V, 50 Hz reference input; 2000 W nominal supply proposal. Redundant supplies and other AC / DC inputs can be specified. Supply rating is not measured system consumption. |
| Cooling | Forced-air cooling with replaceable fan assemblies; airflow and component power limits are engineered for the installation. |

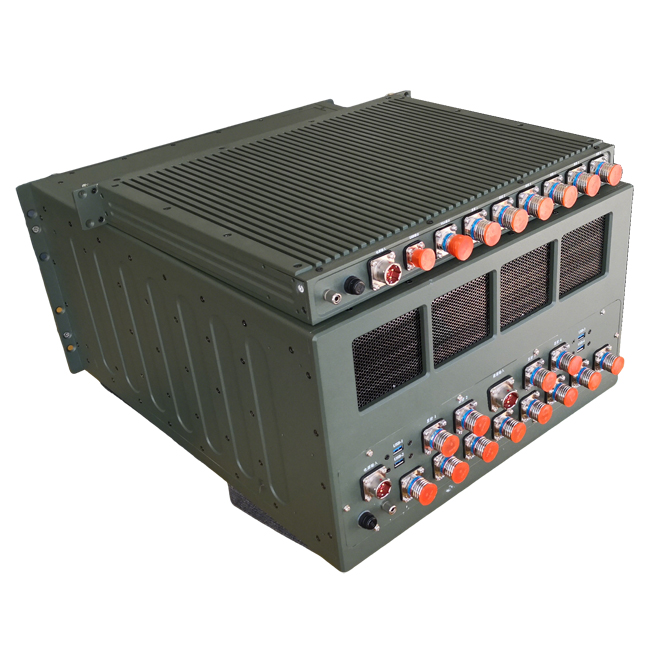

| Enclosure | CNC-machined aluminum alloy enclosure; mounting, finish and connector protection can be specified. |
| Dimensions | 482.6 × 600 × 266 mm (W × D × H); 6U enclosure reference. Final drawings depend on connectors and mounting hardware. |
| Weight | Approx. 40 kg enclosure-family reference; final weight varies with installed hardware. |
| Operating environment | Target operating range: −20°C to +55°C; lower-temperature operation can be engineered on request. The accepted range depends on the complete configured system and environmental testing. |
| Storage environment | Target non-operating range: −40°C to +65°C; up to 95% relative humidity, non-condensing. Project-specific qualification applies. |
| Customization | CPU, memory, storage, GPU, network adapters, connector layout, power input and environmental test requirements can be specified. |
PROJECT REQUIREMENTS
Environmental & EMC testing
For international projects, specify the required test standard, method, severity and acceptance criteria in your inquiry. Potential references include MIL-STD-810 or IEC 60068 for environmental testing, and MIL-STD-461 for equipment EMC testing. Applicability must be reviewed for your application.
Test methods, levels and acceptance criteria are agreed for the configured system. Request applicable reports for your project; listing a standard does not indicate certification.
