Windows / Linux tablets
T080R
T080R Rugged Tablet
Intel Processor N150
- ProcessorIntel Processor N150; 4 cores / 4 threads; up to 3.6 GHz; 6 MB cache; 6 W processor base power.
- Memory8 GB LPDDR5-4800; 16 GB option. Single-channel, non-ECC; capacity and operating speed depend on the selected board.
- Operating systemOS customization options: Windows 11 Pro / Enterprise, Windows 11 IoT Enterprise LTSC, Ubuntu LTS, Debian, Fedora, Red Hat Enterprise Linux, Rocky Linux, AlmaLinux and openSUSE. Other x86-64 systems can be evaluated. Edition, kernel, drivers, touchscreen and application compatibility are confirmed for the selected hardware.
DESIGN & CONFIGURATION
Product overview
- 8-inch IPS; 1280 × 800 at 450 nits; optional 1000-nit panel or 1920 × 1200 at 800 nits.
- Compact handheld use; optional hand strap and vehicle mount.
- Optional barcode, NFC and RFID for field data collection
- Project-specific radios, power and environmental requirements
TECHNICAL DATA
Reference specifications
Reference configuration. Customizable to your requirements.
| Processor | Intel Processor N150; 4 cores / 4 threads; up to 3.6 GHz; 6 MB cache; 6 W processor base power. |
|---|---|
| Memory | 8 GB LPDDR5-4800; 16 GB option. Single-channel, non-ECC; capacity and operating speed depend on the selected board. |
| Operating system | OS customization options: Windows 11 Pro / Enterprise, Windows 11 IoT Enterprise LTSC, Ubuntu LTS, Debian, Fedora, Red Hat Enterprise Linux, Rocky Linux, AlmaLinux and openSUSE. Other x86-64 systems can be evaluated. Edition, kernel, drivers, touchscreen and application compatibility are confirmed for the selected hardware. |
| Display | 8-inch IPS; 1280 × 800 at 450 nits; optional 1000-nit panel or 1920 × 1200 at 800 nits. |
| Touchscreen | Capacitive multi-touch; optional stylus, glove or wet-touch mode, subject to touch-controller validation. |
| Storage | 256 GB SSD; 512 GB option. NVMe or SATA interface matched to the selected motherboard. |
| Graphics | Intel integrated graphics; external outputs depend on board and connector design. |

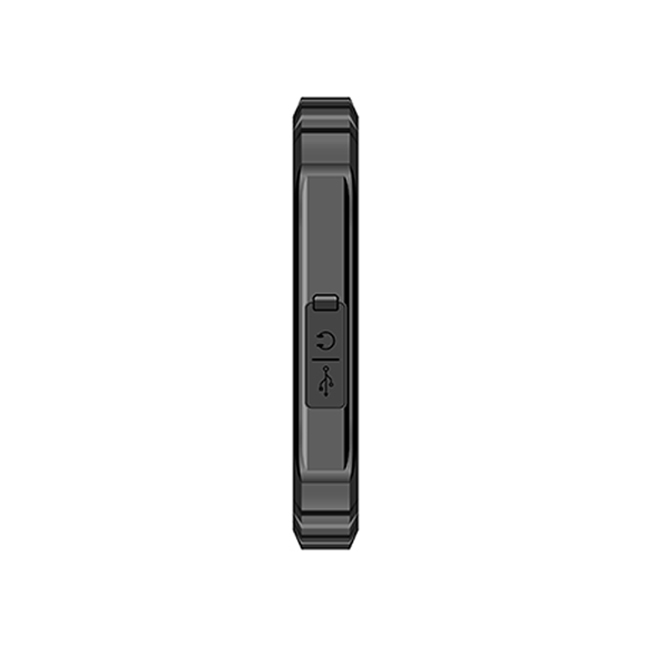

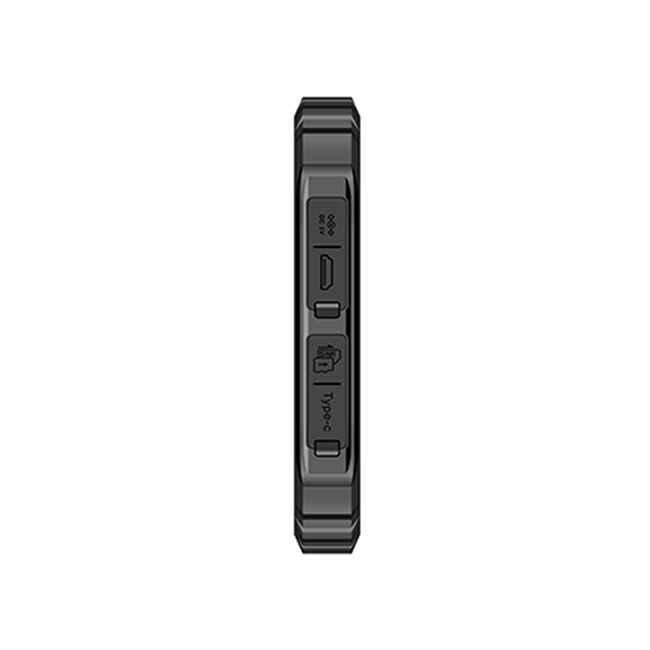

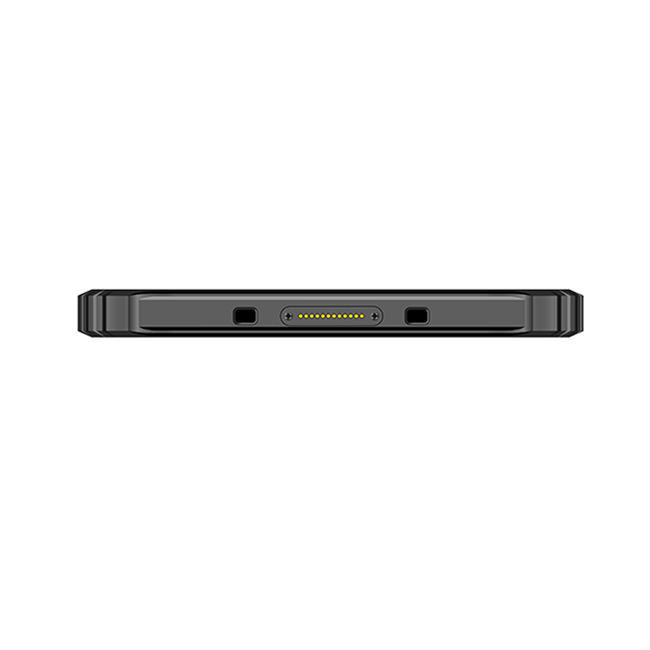

| I/O connections | USB Type-C, USB Type-A, Ethernet, RS-232, mini HDMI, audio, SIM and microSD slots. Final port generation and pinout are matched to the new board. |
| Wireless | Wi-Fi 6 / 6E and Bluetooth through a compatible radio module; antenna layout and regional approvals depend on configuration. |
| Cellular connectivity | Optional 4G LTE / 5G modem. Specify destination country, carrier, bands, SIM format and antenna requirements. |
| Positioning | Optional GNSS receiver: GPS, Galileo, GLONASS and BeiDou support according to selected module and antenna. |
| Cameras | 5 MP front and 13 MP rear camera proposal; optional autofocus and alternative sensors. |
| Expansion options | Optional 1D / 2D barcode imager, NFC / HF RFID, UHF RFID, fingerprint or smart-card modules. Options may share expansion space; select the required combination. |

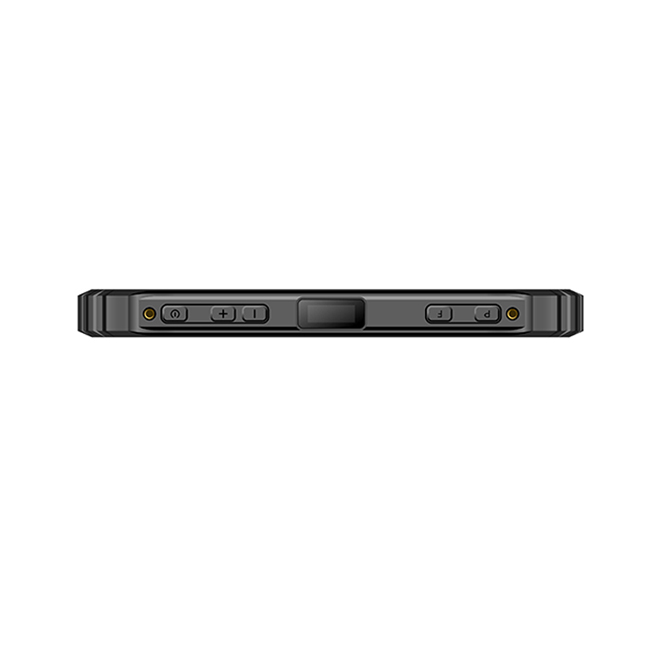

| Controls | Power and programmable function buttons; optional external keyboard or docking controls. |
| Security | TPM 2.0 and Secure Boot options; optional fingerprint or smart-card reader. Availability depends on board, firmware and OS. |
| Battery / power | 3.8 V, 10000 mAh battery proposal (38 Wh). Battery life, charging limits and pack approval are confirmed for the configured system. |
| Charging / input design | Matched AC adapter or DC charging input; USB-C Power Delivery can be engineered on request. Connector, voltage and charge power are confirmed with the battery-management design. |
| Mounting & accessories | Compact handheld use; optional hand strap and vehicle mount. |

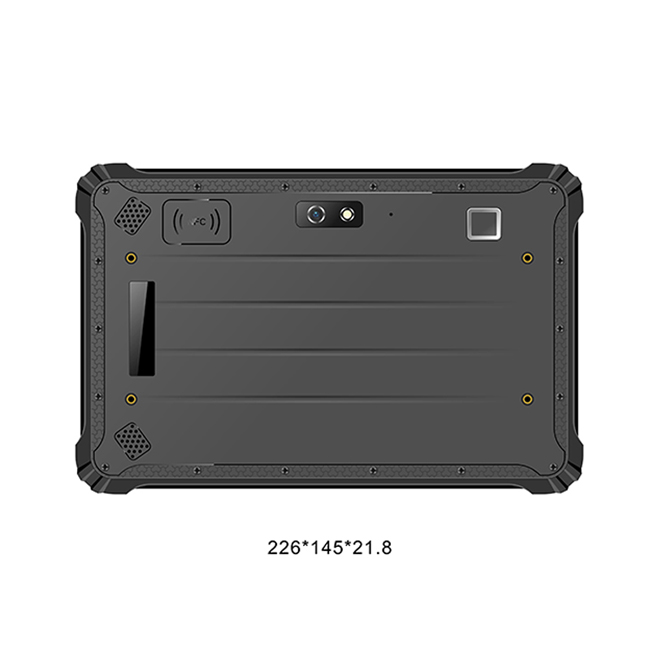

| Dimensions | 226 × 145 × 21.8 mm (W × H × D), enclosure reference; final dimensions depend on connectors and accessories. |
| Weight | Weight confirmed with the selected battery, enclosure options and modules. |
| Operating environment | Target operation: −20°C to +55°C; storage: −30°C to +70°C. Extended ranges, humidity, ingress protection, shock and vibration requirements are agreed and tested for the configured system. |
| Customization | Processor, memory, storage, display, touch, radios, battery, connectors and mounting can be configured to project requirements. |
PROJECT REQUIREMENTS
Environmental & EMC testing
For international projects, specify the required test standard, method, severity and acceptance criteria in your inquiry. Potential references include MIL-STD-810 or IEC 60068 for environmental testing, and MIL-STD-461 for equipment EMC testing. Applicability must be reviewed for your application.
Test methods, levels and acceptance criteria are agreed for the configured system. Request applicable reports for your project; listing a standard does not indicate certification.
