Windows / Linux tablets
UX10G3

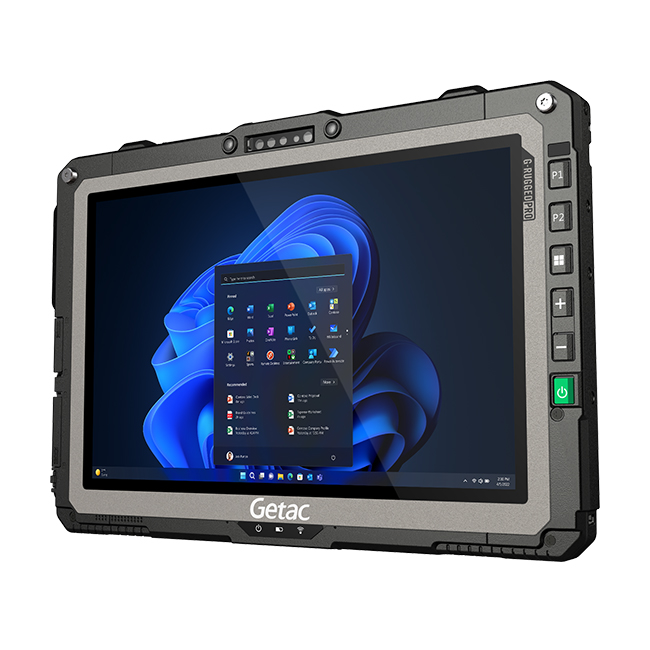

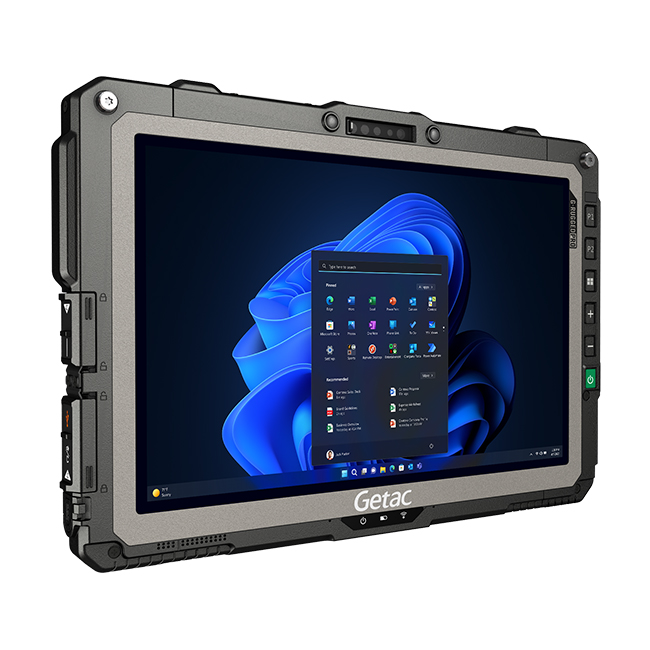

UX10G3 Rugged Tablet
Intel Core Ultra Series 3
- ProcessorIntel Core Ultra 5 325 (Series 3); 8 cores / 8 threads (4 P-cores + 4 low-power E-cores); up to 4.5 GHz; 12 MB cache. Processor base / maximum Turbo power: 25 / 55 W; system power limits are tuned to the enclosure.
- Memory32 GB LPDDR5X; target data rate up to 7467 MT/s. 16 / 32 / 64 GB board configurations can be specified. Final capacity and speed depend on the motherboard and validation.
- Operating systemOS customization options: Windows 11 Pro / Enterprise, Windows 11 IoT Enterprise LTSC, Ubuntu LTS, Debian, Fedora, Red Hat Enterprise Linux, Rocky Linux, AlmaLinux and openSUSE. Other x86-64 systems can be evaluated. Edition, kernel, drivers, touchscreen and application compatibility are confirmed for the selected hardware.
DESIGN & CONFIGURATION
Product overview
- 10.1-inch WUXGA, 1920 × 1200; 1000-nit outdoor-readable display.
- Handheld use; optional hand strap, kickstand and vehicle dock.
- Optional barcode, NFC and RFID for field data collection
- Project-specific radios, power and environmental requirements
TECHNICAL DATA
Reference specifications
Reference configuration. Customizable to your requirements.
| Processor | Intel Core Ultra 5 325 (Series 3); 8 cores / 8 threads (4 P-cores + 4 low-power E-cores); up to 4.5 GHz; 12 MB cache. Processor base / maximum Turbo power: 25 / 55 W; system power limits are tuned to the enclosure. |
|---|---|
| Memory | 32 GB LPDDR5X; target data rate up to 7467 MT/s. 16 / 32 / 64 GB board configurations can be specified. Final capacity and speed depend on the motherboard and validation. |
| Operating system | OS customization options: Windows 11 Pro / Enterprise, Windows 11 IoT Enterprise LTSC, Ubuntu LTS, Debian, Fedora, Red Hat Enterprise Linux, Rocky Linux, AlmaLinux and openSUSE. Other x86-64 systems can be evaluated. Edition, kernel, drivers, touchscreen and application compatibility are confirmed for the selected hardware. |
| Display | 10.1-inch WUXGA, 1920 × 1200; 1000-nit outdoor-readable display. |
| Touchscreen | Capacitive multi-touch; optional stylus, glove or wet-touch mode, subject to touch-controller validation. |
| Storage | 512 GB NVMe SSD; 1 TB / 2 TB options, subject to module size and thermal design. |
| Graphics | Intel integrated graphics; external outputs depend on board and connector design. |
| I/O connections | USB Type-A, USB Type-C, audio, DC input and docking connector; optional Ethernet / serial module. Final port generation and pinout are matched to the new board. |
| Wireless | Wi-Fi 6 / 6E and Bluetooth through a compatible radio module; antenna layout and regional approvals depend on configuration. |
| Cellular connectivity | Optional 4G LTE / 5G modem. Specify destination country, carrier, bands, SIM format and antenna requirements. |
| Positioning | Optional GNSS receiver: GPS, Galileo, GLONASS and BeiDou support according to selected module and antenna. |
| Cameras | Front camera and 8 MP rear camera proposal; optional compatible IR camera for face authentication. |
| Expansion options | Optional 1D / 2D barcode imager, NFC / HF RFID, UHF RFID, fingerprint or smart-card modules. Options may share expansion space; select the required combination. |
| Controls | Power and programmable function buttons; optional external keyboard or docking controls. |
| Security | TPM 2.0 and Secure Boot options; optional fingerprint or smart-card reader. Availability depends on board, firmware and OS. |

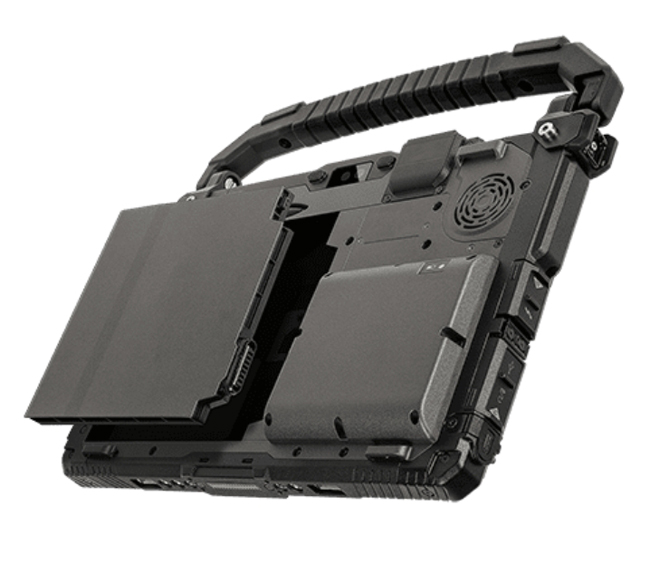

| Battery / power | 11.1 V, 4200 mAh battery proposal (about 46.6 Wh); high-capacity and bridge-battery options. Battery life, charging limits and pack approval are confirmed for the configured system. |
| Charging / input design | Matched AC adapter or DC charging input; USB-C Power Delivery can be engineered on request. Connector, voltage and charge power are confirmed with the battery-management design. |
| Mounting & accessories | Handheld use; optional hand strap, kickstand and vehicle dock. |
| Dimensions | 279 × 194.5 × 23.5 mm (W × H × D), enclosure reference; final dimensions depend on connectors and accessories. |
| Weight | Approx. 1.22 kg enclosure-family reference; final weight depends on configuration. |
| Operating environment | Target operation: −20°C to +55°C; storage: −30°C to +70°C. Extended ranges, humidity, ingress protection, shock and vibration requirements are agreed and tested for the configured system. |
| Customization | Processor, memory, storage, display, touch, radios, battery, connectors and mounting can be configured to project requirements. |
PROJECT REQUIREMENTS
Environmental & EMC testing
For international projects, specify the required test standard, method, severity and acceptance criteria in your inquiry. Potential references include MIL-STD-810 or IEC 60068 for environmental testing, and MIL-STD-461 for equipment EMC testing. Applicability must be reviewed for your application.
Test methods, levels and acceptance criteria are agreed for the configured system. Request applicable reports for your project; listing a standard does not indicate certification.
